Used at the end of a pipe run, where air sampling is still required. The compression adapter is simple to use, by pushing the 10mm tubing into the adapter housing until a click is heard, confirming it is located, it can easily be removed by pushing down on the black ring.

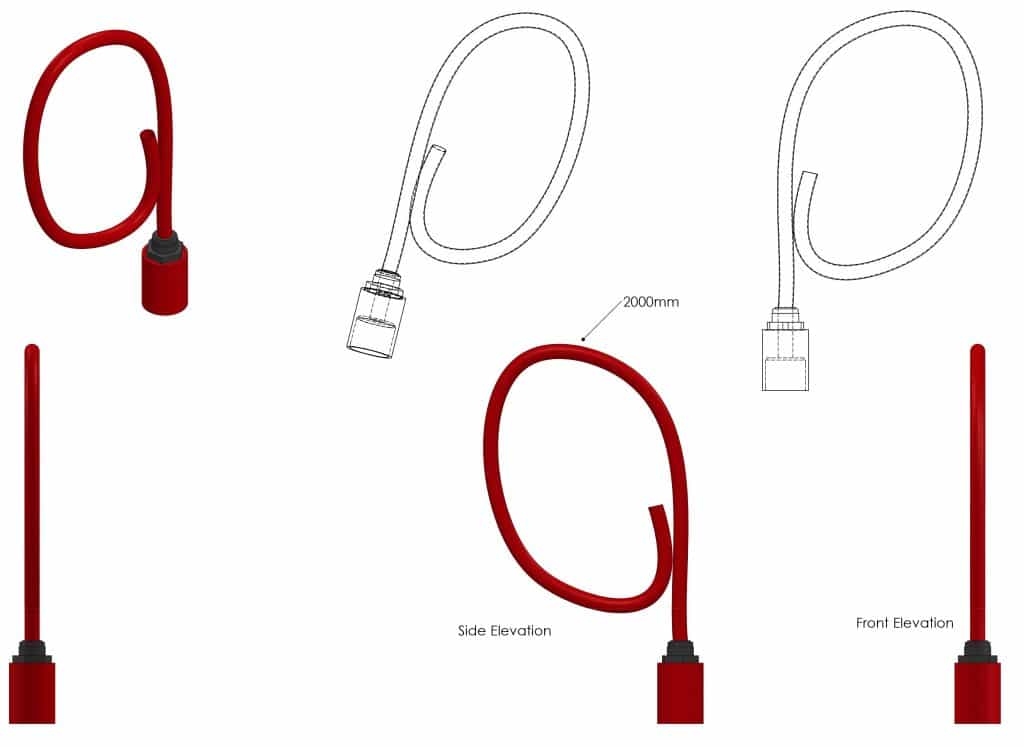

ABS042D/EC – 25mm – DISCRETE END CAP KIT WITH SOCKET COMPRESSION ADAPTOR
Description
Installation Instructions:
Use the correct solvent Plusbond 3019. Do not paint. Keep pipe clean and free from dust. Do not install in direct sunlight. Only install with approved pipe. Do not use solvents to clean, only soapy water.
PART NO.: ABS042D/EC – 25
FITTINGS COLOUR: Red
PIPE COLOUR: Red
DIAMETER TOLERANCE: + / – 0.15mm’
OPERATING TEMP: – 40 c to 70 c’
WALL THICKNESS: 2mm
WEIGHT: 87.6g
