Used at the end of a pipe run to sample air, this product has the advantage of having a compression adapter, which is used to join the pipe to the 10mm tubing by clicking into position, or removing by pushing down on the black ring.

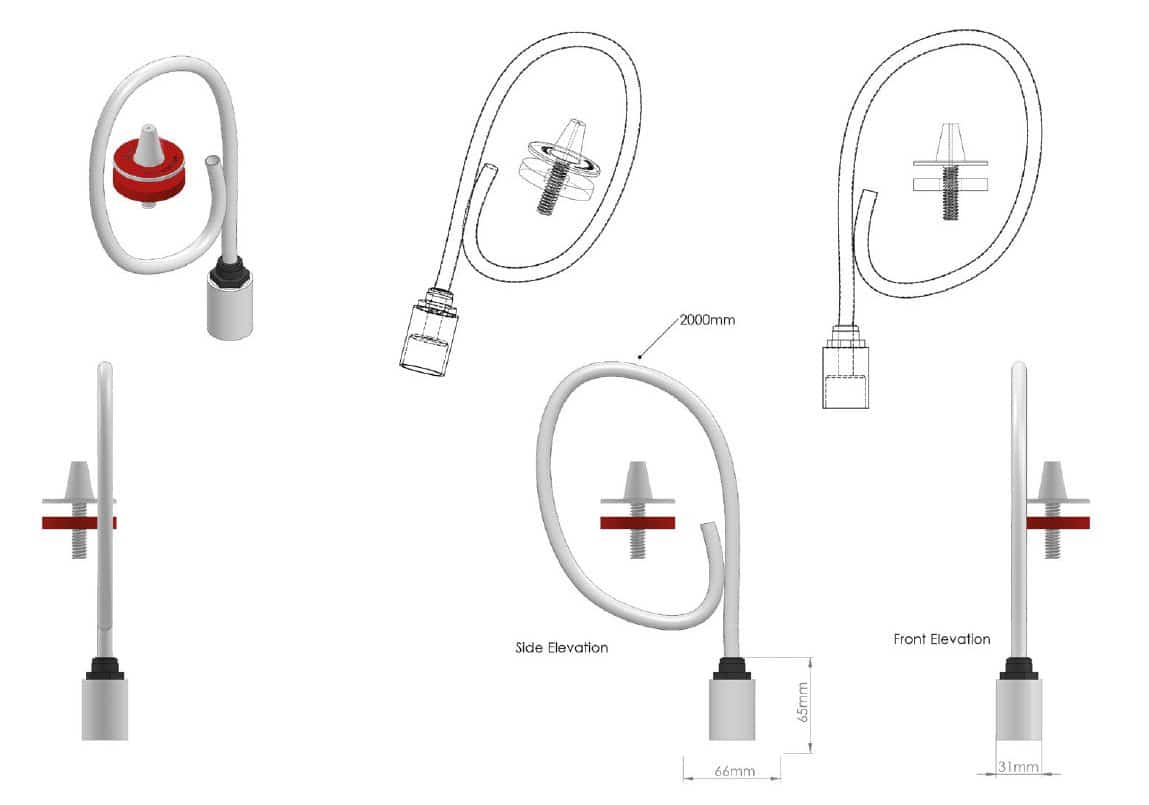

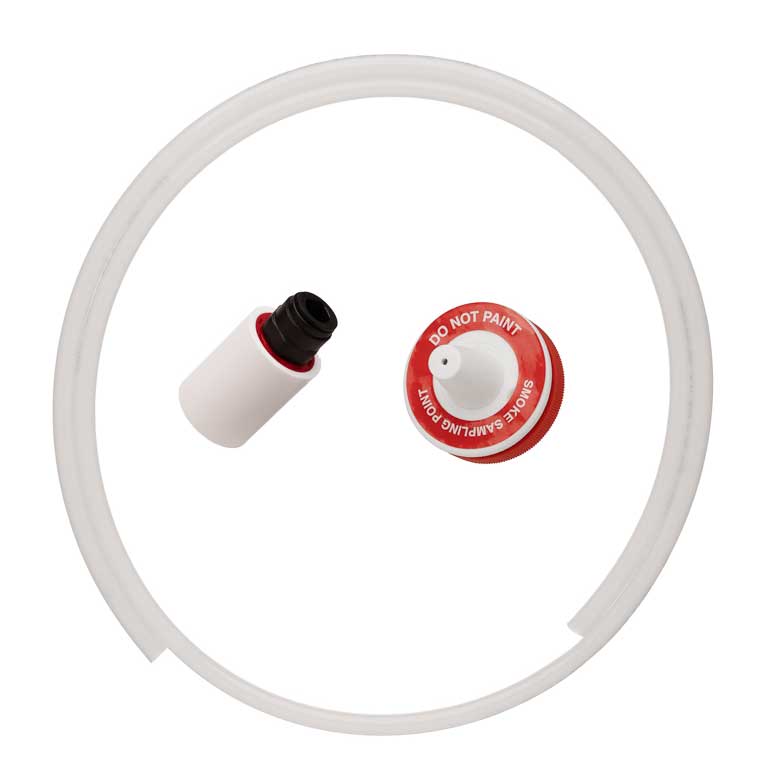

WHABS042C/EC – 25mm – CONICAL END CAP KIT WITH SOCKET COMPRESSION ADAPTOR
Description
Installation Instructions:
Use the correct solvent Plusbond 3019. Do not paint. Keep pipe clean and free from dust. Do not install in direct sunlight. Only install with approved pipe. Do not use solvents to clean, only soapy water.
PART NO.: WHABS042C/EC – 25
FITTINGS COLOUR: White
PIPE COLOUR: White
DIAMETER TOLERANCE: + / – 0.15mm’
OPERATING TEMP: – 40 c to 70 c’
WALL THICKNESS: 2mm
WEIGHT: 87.6g
